HS

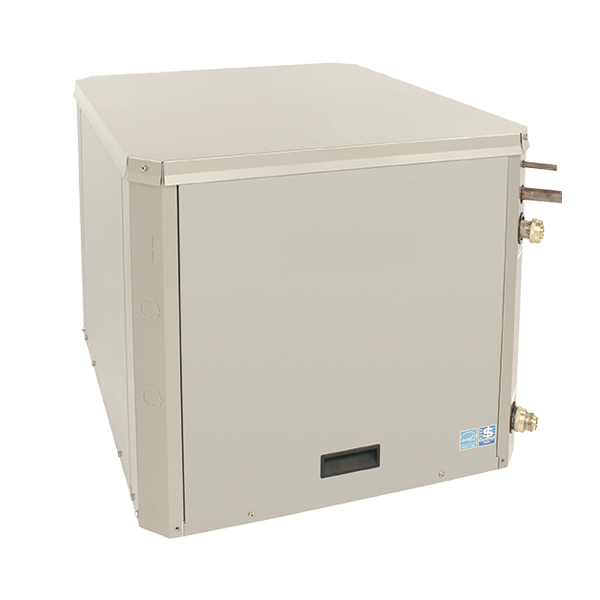

QuietComfort® Split System Geothermal Heat Pump
Make the most of the Earth's resources with our split-system geothermal heat pump. Designed to be paired with a furnace or fan coil, the model HS includes two stages of comfort for even, constant heating or cooling. And when matched with a gas or propane furnace, you'll enjoy the additional savings of a dual fuel system that selects the most efficient heating source as conditions change.
- High-efficiency comfort while managing your utility costs (efficiency is unit size dependent)
- Two-stage compressor for improved temperature and summer humidity control
- Large operating temperature range with outstanding cold weather performance
- Insulated cabinet and compressor blanket for quiet operation
- Compatible with a wide range of furnaces and fan coils
- 5-Year No Hassle Replacement™ Limited Warranty+
- 10-year parts and labor limited warranty1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
- 3.3 to 4.6 COP heating efficiency (closed loop)
- 3.8 to 5.2 COP heating efficiency (open loop)
- 14.8 to 28.8 EER cooling efficiency (closed loop)
- 19.2 to 29.1 EER cooling efficiency (open loop)
- Two-stage scroll compressor (Select Sizes)
- Dependent on furnace or fan coil with ECM blower motor
- Fully insulated cabinet
- Compressor sound blanket
- Energy Star® rated in all sizes
Heating Efficiency (closed loop)
Closed-loop heating efficiency refers to the geothermal heat pump's ability to transfer heat from the earth to a home using a closed loop of underground pipes. The efficiency is measured in Coefficient of Performance (COP), which represents the ratio of heat output to the amount of electrical energy consumed. A higher COP indicates greater efficiency, meaning the system can provide more heating for less energy use.
Heating Efficiency (open loop)
Open-loop heating efficiency refers to a geothermal heat pump's ability to use a water source, such as a well or a nearby lake, to transfer heat into a home. The efficiency is measured in Coefficient of Performance (COP), which represents the ratio of heat delivered to the amount of energy consumed. A higher COP indicates better efficiency, meaning the system can deliver more heating for less energy input, with the water source acting as a constant heat reservoir.
Cooling Efficiency (closed loop)
Closed-loop cooling efficiency for a geothermal heat pump refers to the system's ability to remove heat from a home by transferring it to the ground through a closed loop of underground pipes. The efficiency is measured in Coefficient of Performance (COP), which indicates the ratio of cooling output to the energy input. A higher COP signifies better efficiency, meaning the system can provide more cooling for less energy consumption, with the earth acting as a stable and efficient heat sink.
Cooling Efficiency (open loop)
Open-loop cooling efficiency for a geothermal heat pump refers to the system's ability to remove heat from a home by using a water source, such as a well or pond, to absorb the heat. The efficiency is measured in Coefficient of Performance (COP), which represents the ratio of cooling output to the electrical energy consumed. A higher COP indicates better efficiency, meaning the system can remove more heat for less energy use, with the water source providing a reliable and consistent means for heat exchange.
+ No Hassle Replacement™ Limited Warranty: If compressor, coil or heat exchanger fails due to defect during the applicable No Hassle Replacement limited warranty time period, a one-time replacement with a comparable unit will be provided.
1. To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
